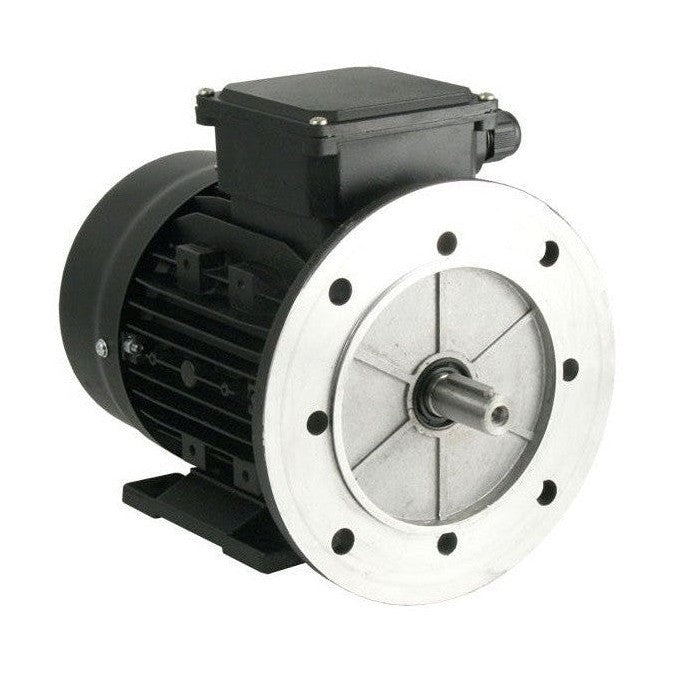

IDA 80 Frame - 0.55kW (0.75HP) Single Phase Capacitor Run 4 Pole AC Motor for use at fixed Speed.
Use with a fixed frequency 1ph input at 230V x 50Hz for 0.55kW x 1340RPM.
Low starting torque at 70%. Full Load Current - 3.90A. Starting Current is 11A.
Mounting is B35 Foot and Flange mounting. Foot mount on 10mm holes at 125mm wide x 100mm centres 50mm back from shaft shoulder. Flange mount on 4 x 12mm holes at 165mm PCD with 130mm diameter spigot in the 200mm diameter flange. Shaft is 19mm dia x 40mm long with 6mm keyway. Weight is 9.5kg
Rated at 40C Ambient. Ventilation space required at rear cooling air intake.
