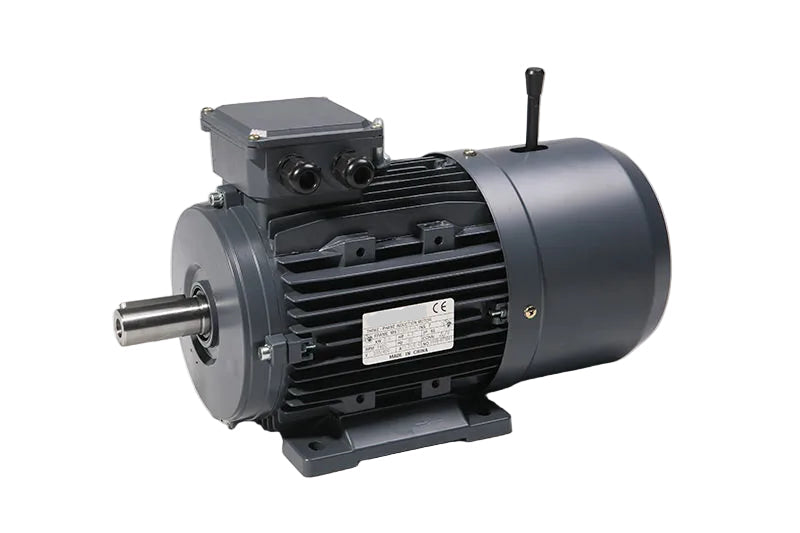

INVERTEK Brake-Motor 0,55KW 4P 80-19 240/415V 3ph 50HZ B34A

IDA 0.55kW 3ph 4 Pole B34 Foot and Face 80 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.

Output: 0.55kW at 1420rpm, 230V or 400V, 50Hz 3ph.
Speed Range from Inverter Supply: From 142rpm to 1704rpm for 5Hz to 60Hz control, with suitable de-rating at the lower speeds.

Fitted with Electronic Holding brake and emergency hand release handle
Brake Torque 8Nm
Brake Voltage: 205Vdc. (Full wave rectifier)
As Default the brake is connected to one phase and the star point in the motor terminal box which gives the 205Vdc required. However if used with an AC Inverter these brake connections must be connected to a separate 230V 1ph supply to operate the brake as the AC Inverter output is not suitable.

Full Load Current with links in Delta for 230V 3ph: 2.55A.
Full Load Current with links in Star for 400V 3ph: 1.47A. (Default).
Torque: 3.7Nm
Power Factor: 0.7 when mains connected at 50Hz.
Efficiency: 77.1% (IE2)

Terminal box position: Top (default), sides (move feet).
Enclosure rating: IP55

200mm Wide x 343mm Long (Including shaft and brake) x 210mm high overall (Including terminal box and handle)
Foot mount on 10mm holes at 125mm wide x 100mm centres 50mm back from the shaft shoulder; Face mount on 4 x M6 tapped holes at 100mm PCD with 80mm diameter spigot in the 120mm diameter flange
Shaft: 19mm diameter, 40mm long with 6mm key
Construction: Aluminium with removable feet.
Weight is 11kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.
