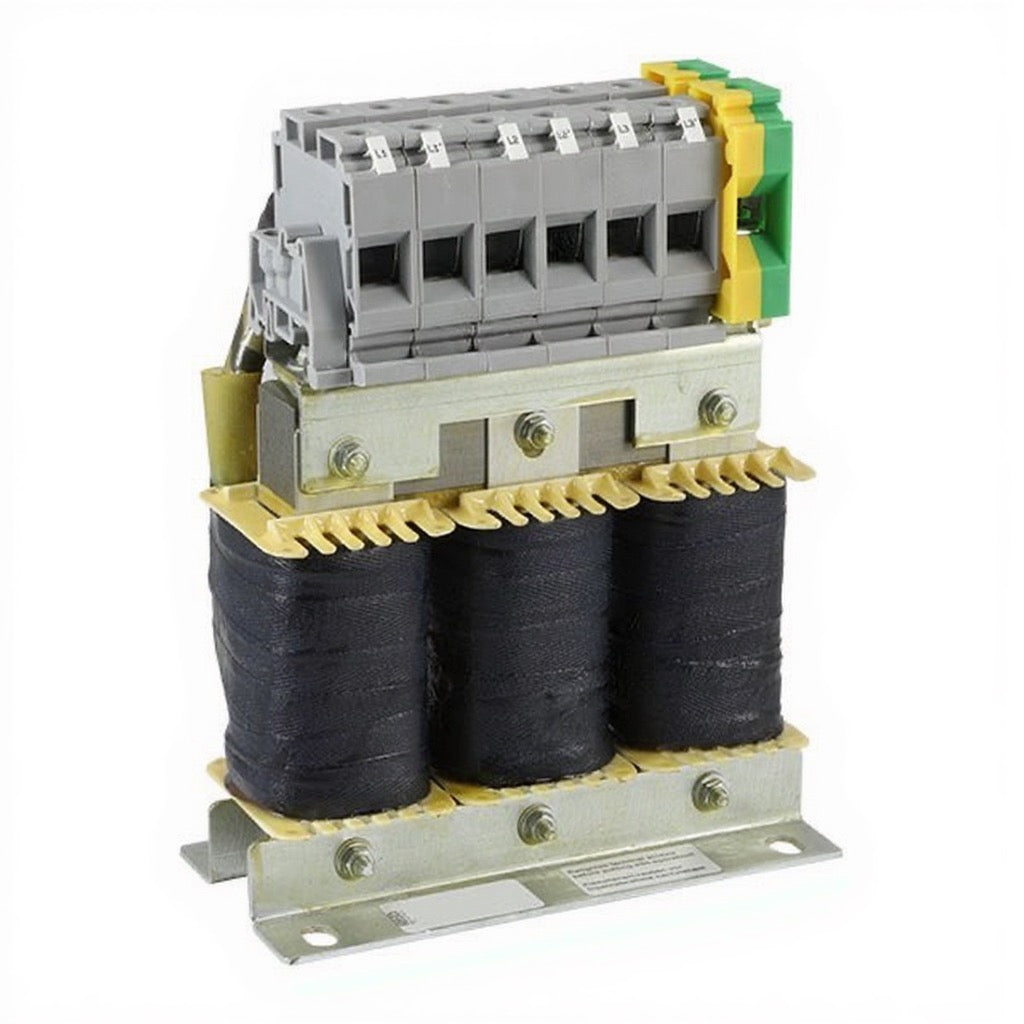

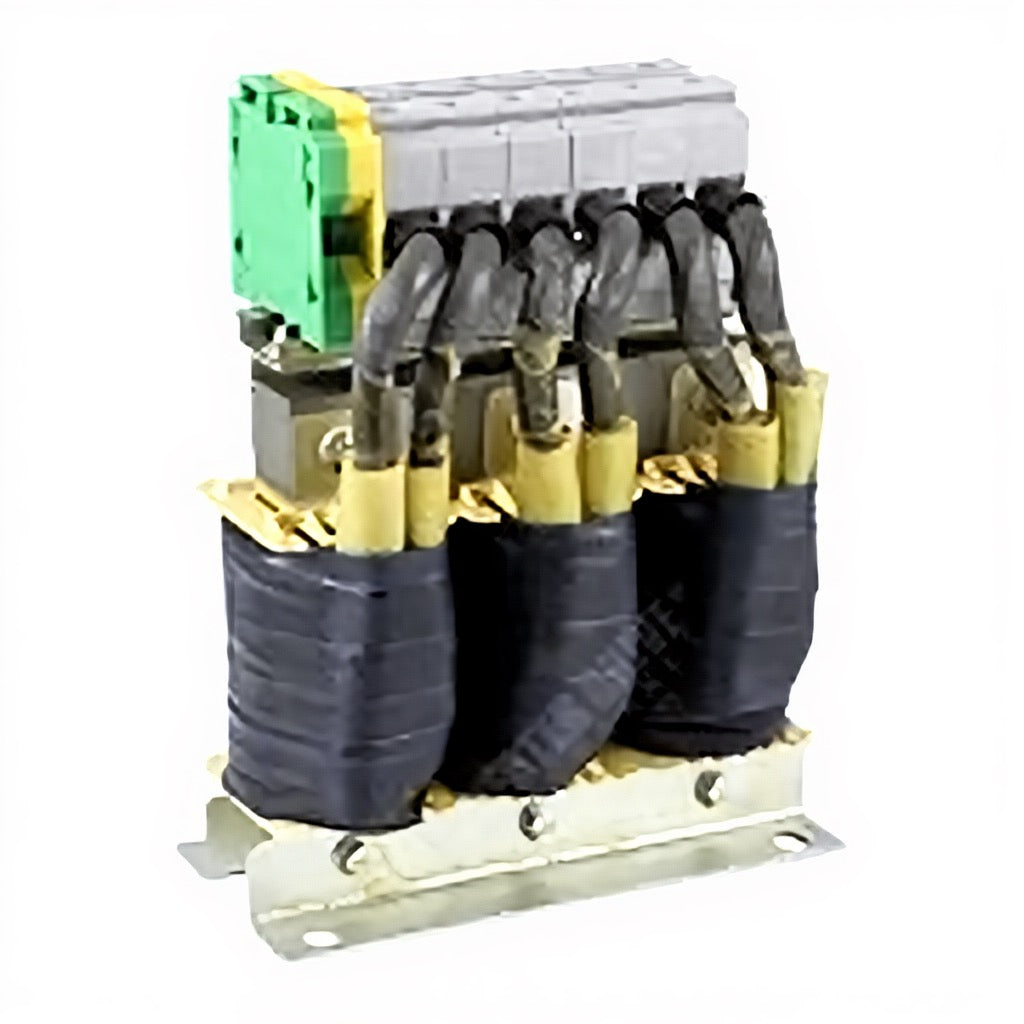

InputThree Phase AC Input Choke to 96A.
Connect directly to the mains input of a 3ph AC Inverter or DC Thristor Drive to reduce harmonic current, RMS load or to increase security on a high fault level supply.
Current Rating: 96A.
Voltage: up to 500V 3 phase
Inductance: 0.05mH.
Protection: IP20.
Weight: 3.7kg.
Dimensions: 155mm Length x 77mm Width x 200mm Height.
Mounting: via 8mm x 12mm slots at 130mm x 55mm centres.

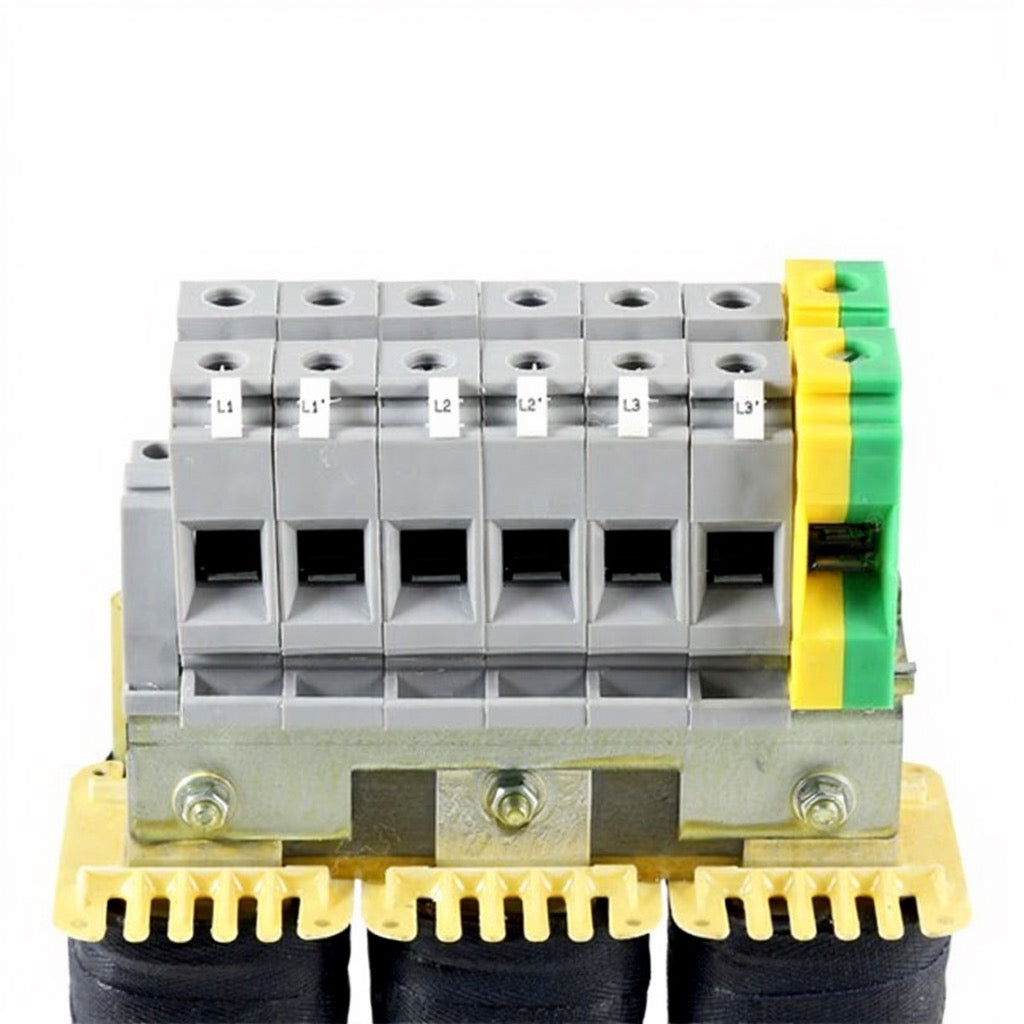

Connection: Terminals suitable for 35mm² cable
Also known as: Mains choke, Line reactor, AC Choke, AC Inductor or Input Choke
Part Number: CNW906/96. (LR120).
