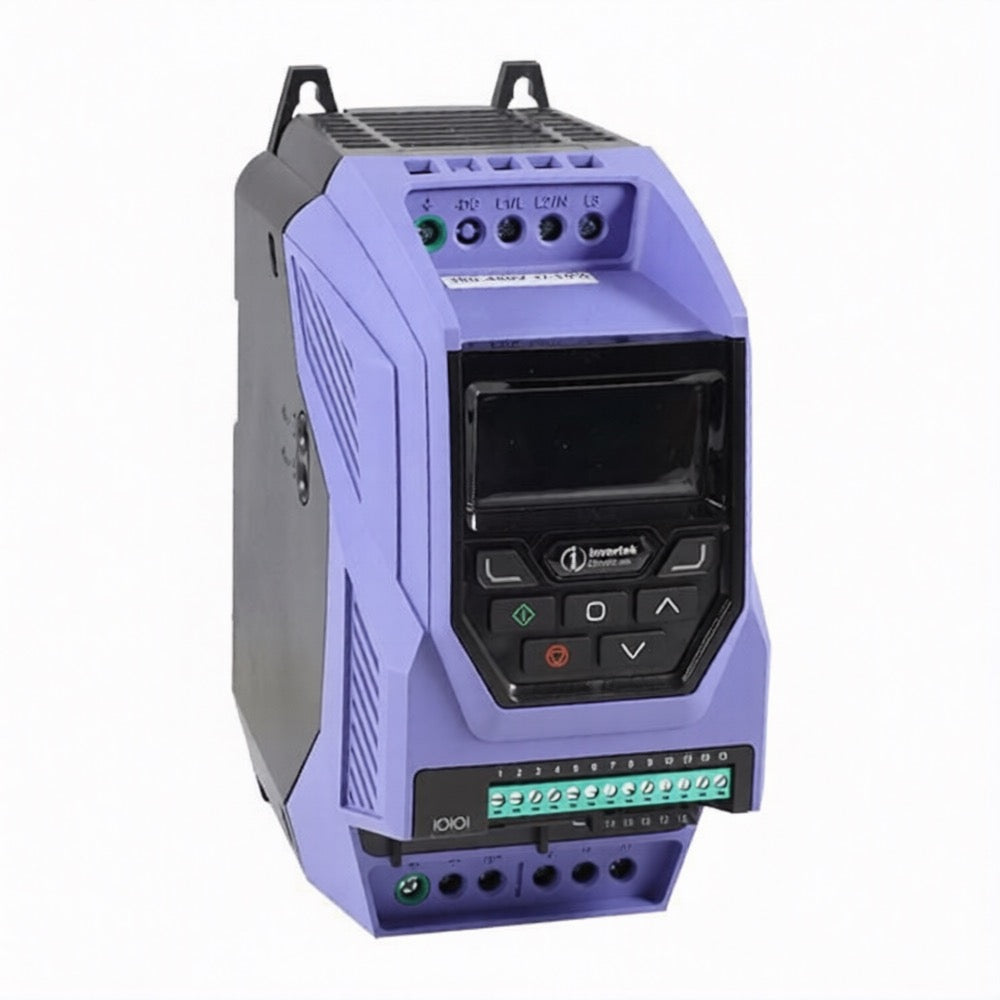

P2 IP20 0.75kW, 1Ph. Input, 3Ph. Output, 200-240V, EMC Filter, Brake Chopper, TFT Display

P2 IP20 0.75kW, 1Ph. Input, 3Ph. Output, 200-240V, EMC Filter, Brake Chopper, TFT Display

$1,097.00 AUD
$1,097.00 AUD
Sale Sold out

0.75 kW, 4.3 A, 200-240 V, 1-3PH

IP20 Variable Frequency Drive with EMC Filter and TFT Display


Input Ratings

Supply Voltage 200-240 V
Input Phases 1
Supply Current Continuous 8.5 A
Supply Fuse or MCB (Type B) 10 A

Output Ratings

Motor Output Rating 0.75 kW (1 HP)
Output Voltage 0 – Supply Voltage
Output Current 4.3 A

Cable Information

Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor Internal
Enclosure IP20
Display TFT Display
PCB Coating Standard

Drive Dimensions

i
Size 2
Height 221 mm (8.7 in)
Width 110 mm (4.33 in)
Depth 185 mm (7.28 in)
Weight 1.8 kg (3.97 lbs)
Fixings 4 x M4

Packaged Dimensions

i
Height 265 mm (10.43 in)
Width 145 mm (5.71 in)
Depth 230 mm (9.06 in)
Weight 1.9 kg (4.19 lbs)



Download the Invertek Optidrive P2 Manual and Advanced User Guide from the links below:-
