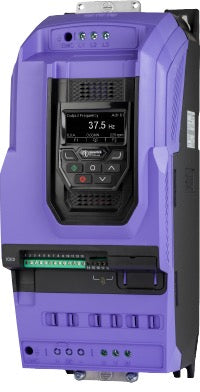

P2 IP20 18.5kW, 3Ph. Input, 3Ph. Output, 500-600V, Brake Chopper, TFT Display
P2 IP20 18.5kW, 3Ph. Input, 3Ph. Output, 500-600V, Brake Chopper, TFT Display
Regular price
$4,954.00 AUD
Regular price
Sale price
$4,954.00 AUD
18.5 kW, 28 A, 500-600 V, 3PH
IP20 Variable Frequency Drive with TFT Display
Input Ratings
| Supply Voltage | 500-600 V |
| Input Phases | 3 |
| Supply Current Continuous | 34 A |
| Supply Fuse or MCB (Type B) | 40 A |
Output Ratings
| Motor Output Rating | 18.5 kW (25 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 28 A |
Cable Information
| Max Supply Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | No Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
i
| Size | 4 |
| Height | 418 mm (16.46 in) |
| Width | 172 mm (6.77 in) |
| Depth | 240 mm (9.45 in) |
| Weight | 9.2 kg (20.28 lbs) |
| Fixings | 4 x M8 |
Packaged Dimensions
i
| Height | 340 mm (13.39 in) |
| Width | 280 mm (11.02 in) |
| Depth | 560 mm (22.05 in) |
| Weight | 11.2 kg (24.69 lbs) |
Download the Invertek Optidrive P2 Manual and Advanced User Guide from the links below:-
