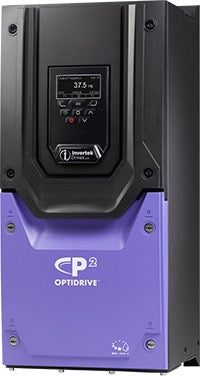

P2 IP55 15kW, 3Ph. Input, 3Ph. Output, 200-240V, EMC Filter, Brake Chopper, TFT Display
P2 IP55 15kW, 3Ph. Input, 3Ph. Output, 200-240V, EMC Filter, Brake Chopper, TFT Display
Regular price
$6,131.00 AUD
Regular price
Sale price
$6,131.00 AUD
15 kW, 60 A, 200-240 V, 3PH
IP55 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 200-240 V |
| Input Phases | 3 |
| Supply Current Continuous | 70.2 A |
| Supply Fuse or MCB (Type B) | 80 A |
Output Ratings
| Motor Output Rating | 15 kW (20 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 60 A |
Cable Information
| Max Supply Cable Size | 35 mm² (0.05 sq in) |
| Max Motor Cable Size | 35 mm² (0.05 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP55 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
i
| Size | 5 |
| Height | 540 mm (21.26 in) |
| Width | 235 mm (9.25 in) |
| Depth | 270 mm (10.63 in) |
| Weight | 23 kg (50.71 lbs) |
| Fixings | 4 x M8 |
Packaged Dimensions
i
| Height | 595 mm (23.43 in) |
| Width | 350 mm (13.78 in) |
| Depth | 375 mm (14.76 in) |
| Weight | 25 kg (55.12 lbs) |
Download the Invertek Optidrive P2 Manual and Advanced User Guide from the links below:-
