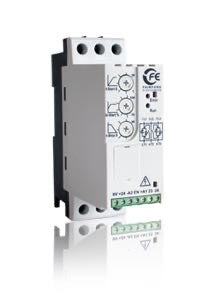

Motortronics VMX-PFE-12 Internally Bypassed Soft Starter for a 230/400V 3 Ph motor up to 11kW (15HP) at 22A.
Rated to suit motors and Trip Class Ratings:
11kW, 22A at 400V - Trip Class 5
7.5kW, 15.5A at 400V - Trip Class 10B
3kW, 6.5A at 400V - Trip Class 30
(see Trip Class Guide below for definitions)
Size 2: 55mm Wide x 120mm Deep x 165mm high. IP20.
Input Voltage - 230-460Vac 3 Phase +10% -15% at 50/60Hz ±2%.
Overload:- 300% x 5 seconds at standard rating.
Starts per hour:- 10 (or 5 starts + 5 soft stops) - Standard
Starts per hour:- 60 (or 30 starts + 30 soft stops) - with optional fan
Start Time: 1-30s
Stop Time: 0-30s
Features include:
Bypass Contactor.
Pedestal Voltage:- adjustable from 30% for standard rating to 100% for high breakaway loads.
Requires 24V Control Supply
Wall mount in clean environment, onto symmetrical DIN rail or cubicle mount.
Rated at 40°C Ambient.
Full part number is VMX-PFE-12-4-01. Originally known as PFE-12. Sometimes specified as PFE12.
