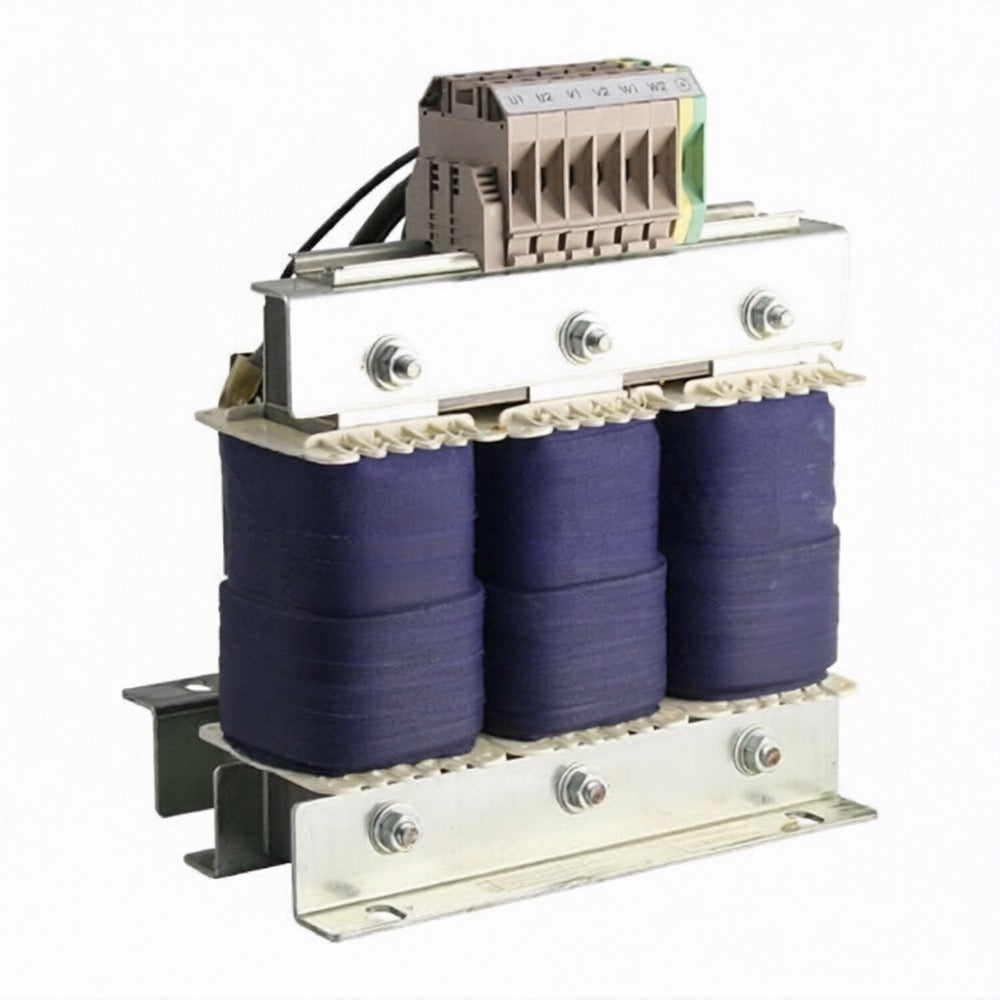

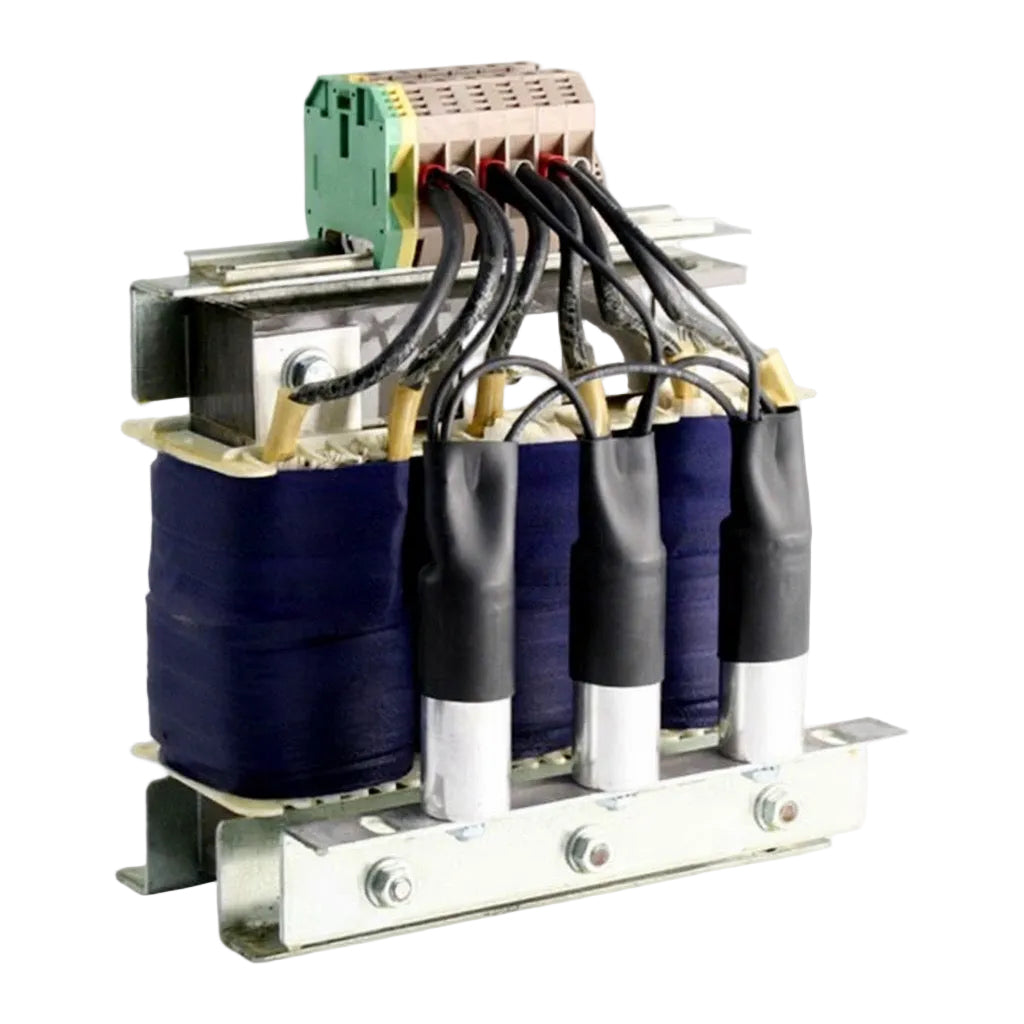

Sine Filter for 75kW (150A) Inverter - N CNW933/150

Three Phase Output Sine Filter for 400V 3 phase 75kW Inverter Drives to 150A.

Use this as an output choke for long cable runs, up to 600m. Cable run is the accumulated actual cable length, connected to the Inverter output terminals feeding single or multiple motors.
This product is used to reduce peak Voltages applied at the motor for old or vulnerable motors and very long cable runs.

Rating: 150A maximum continuous.
Inductance: 0.326mH
Capacitance: 40µF
Losses: 310W
Overload: 150% for 60 seconds every hour.
Voltage 500V 3 phase.
Switching Frequency: 1.5kHz to 4kHz.
Enclosure Rating: IP00.

Weight: 61kg
Dimensions: 360mm long x 306mm wide x 350mm high (image 5).
Mounting: 10mm x 18mm slots on 224mm x 119mm centres.
Connections: Screw terminals for 50mm² cable.

Manufacturer: REO
Part Number : N-CNW933/150

The three main reasons to use this product are...
1) Output choke/sine wave filter for cleaning up the sine wave and reducing common mode noise.
2) It also allows the installation of long cable runs, up to 600m. Cable run is the accumulated actual cable length, connected to the Inverter output terminals feeding single or multiple motors.
3) This product reduces peak Voltages applied at the motor for old or vulnerable motors.

Download the dimension drawing from the link below:
