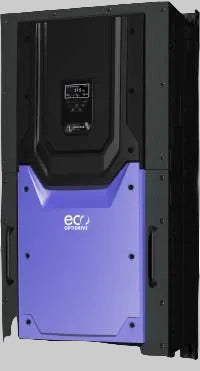

V3 200 kW (300 HP), 370 A, 380-480 V, 3PH IP20 Variable Frequency Drive with EMC Filter
V3 200 kW (300 HP), 370 A, 380-480 V, 3PH IP20 Variable Frequency Drive with EMC Filter
Regular price
$33,631.00 AUD
Regular price
Sale price
$33,631.00 AUD
200 kW (300 HP), 370 A, 380-480 V, 3PH
IP20 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 370 A |
| Supply Fuse or MCB (Type B) | 500 A |
Output Ratings
| Motor Output Rating | 200 kW (300 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 370 A |
Cable Information
| Max Supply Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
i
| Size | 8 |
| Height | 974 mm (38.35 in) |
| Width | 444 mm (17.48 in) |
| Depth | 423 mm (16.65 in) |
| Weight | 124.5 kg (274.48 lbs) |
| Fixings | 4 x M12 |
Packaged Dimensions
i
| Height | 660 mm (25.98 in) |
| Width | 620 mm (24.41 in) |
| Depth | 1020 mm (40.16 in) |
| Weight | 144 kg (317.47 lbs) |
Download the V3 Manuals from the links below:-
