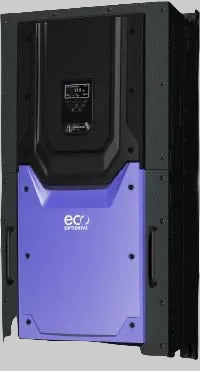

250 kW (400 HP), 480 A, 380-480 V, 3PH
IP20 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage |
380-480 V |
| Input Phases |
3 |
| Supply Current Continuous |
480 A |
| Supply Fuse or MCB (Type B) |
600 A |
Output Ratings
| Motor Output Rating |
250 kW (400 HP) |
| Output Voltage |
0 – Supply Voltage |
| Output Current |
480 A |
Cable Information
| Max Supply Cable Size |
240 mm² (0.37 sq in) |
| Max Motor Cable Size |
240 mm² (0.37 sq in) |
| Max Motor Cable Length |
100 m (328 ft) |
Factory Build Options
| EMC Filter |
Internal EMC |
| Brake Transistor |
No Brake Transistor |
| Enclosure |
IP20 |
| Display |
TFT Display |
| PCB Coating |
Standard |
Drive Dimensions
| Size |
8 |
| Height |
974 mm (38.35 in) |
| Width |
444 mm (17.48 in) |
| Depth |
423 mm (16.65 in) |
| Weight |
124.5 kg (274.48 lbs) |
| Fixings |
4 x M12 |
Packaged Dimensions
| Height |
660 mm (25.98 in) |
| Width |
620 mm (24.41 in) |
| Depth |
1020 mm (40.16 in) |
| Weight |
144 kg (317.47 lbs) |
Download the V3 Manuals from the links below:-
