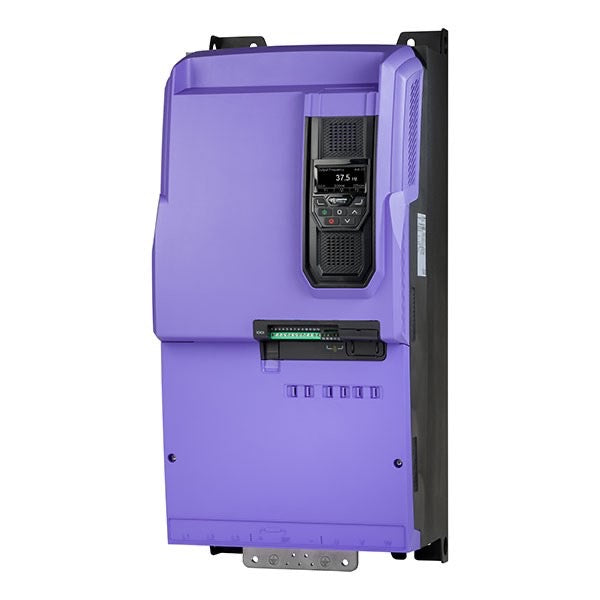

V3 IP20 110kW, 3Ph. Input, 3Ph. Output, 380-480V, EMC Filter

IDAV3 IP20 Series AC Inverter for 110kW (175HP) 400V 3 Ph motor to 202A. Operates in VxF or Sensorless Vector. Converts fixed frequency Three Phase 400V input to variable frequency 400V to control the speed of a standard AC induction motor or permanent magnet synchronous motor.

Size 6B: 330mm Wide x 320mm Deep x 726mm High. IP20.
Weight: 43kg.

Overload: 150% x 60 seconds
Speed Control Range: 0-500Hz.

TFT Display. (High Definition LCD Display)
2 Analogue Inputs, 3 Digital Inputs, 2 Analogue/Digital Outputs, 2 Relay Contact Sets. Additional I/O expansion options are available – see linked products below.
DC Bus terminals for DC supply or common bus energy saving applications.
Terminals for Safe Torque Off (EN62061 SIL Level 2), RJ45 RS-485/Modbus RTU/BACnet communications socket.
Input Current: 190A
Input Voltage: 380-480V Three Phase ±10% at 50-60Hz ±5%
EMC Filters: IEC EN61800-3:2004 Category C3 (Industrial).

Wall mount
Rated 40°C Ambient.
Ventilation space in front: [Not Specified]
Ventilation space above and below: 200mm
Ventilation space at sides: 25mm
Mounting via 4 x slotted holes at rear for M10 screws on 225mm x 680mm centres.

Manufacturer Part Number is V3-642020-3F12-MN or ODV-3-642020-3F12-MN
Made in the UK.

Download the IDA V3 Manual and Advanced User Guide from the links below:-
