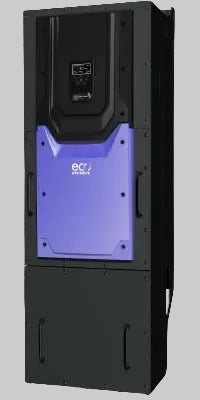

V3 IP55 250kW, 3Ph. Input, 3Ph. Output, 380-480V, EMC Filter
V3 IP55 250kW, 3Ph. Input, 3Ph. Output, 380-480V, EMC Filter
Regular price
$55,759.00 AUD
Regular price
Sale price
$55,759.00 AUD
250 kW (350 HP), 450 A, 380-480 V, 3PH IP55
Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 480 A |
| Supply Fuse or MCB (Type B) | 600 A |
Output Ratings
| Motor Output Rating | 250 kW (350 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 480 A |
Cable Information
| Max Supply Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP55 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
| Size | 8 |
| Height | 1334 mm (52.52 in) |
| Width | 444 mm (17.48 in) |
| Depth | 423 mm (16.65 in) |
| Weight | 144 kg (317.47 lbs) |
| Fixings | 4 x M12 |
Packaged Dimensions
| Height | 980 mm (38.58 in) |
| Width | 610 mm (24.02 in) |
| Depth | 1040 mm (40.94 in) |
| Weight | 165 kg (363.76 lbs) |
Download the V3 Manuals from the links below:-
