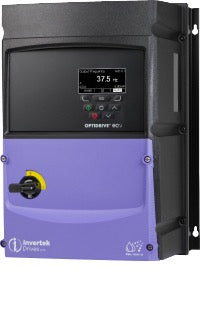

V3 IP66 22kW with Isolator, 3Ph. Input, 3Ph. Output, 380~480V, EMC Filter

V3 IP66 22kW with Isolator, 3Ph. Input, 3Ph. Output, 380~480V, EMC Filter

$6,263.00 AUD
$6,263.00 AUD
Sale Sold out

22 kW (30 HP), 46 A, 380-480 V, 3PH

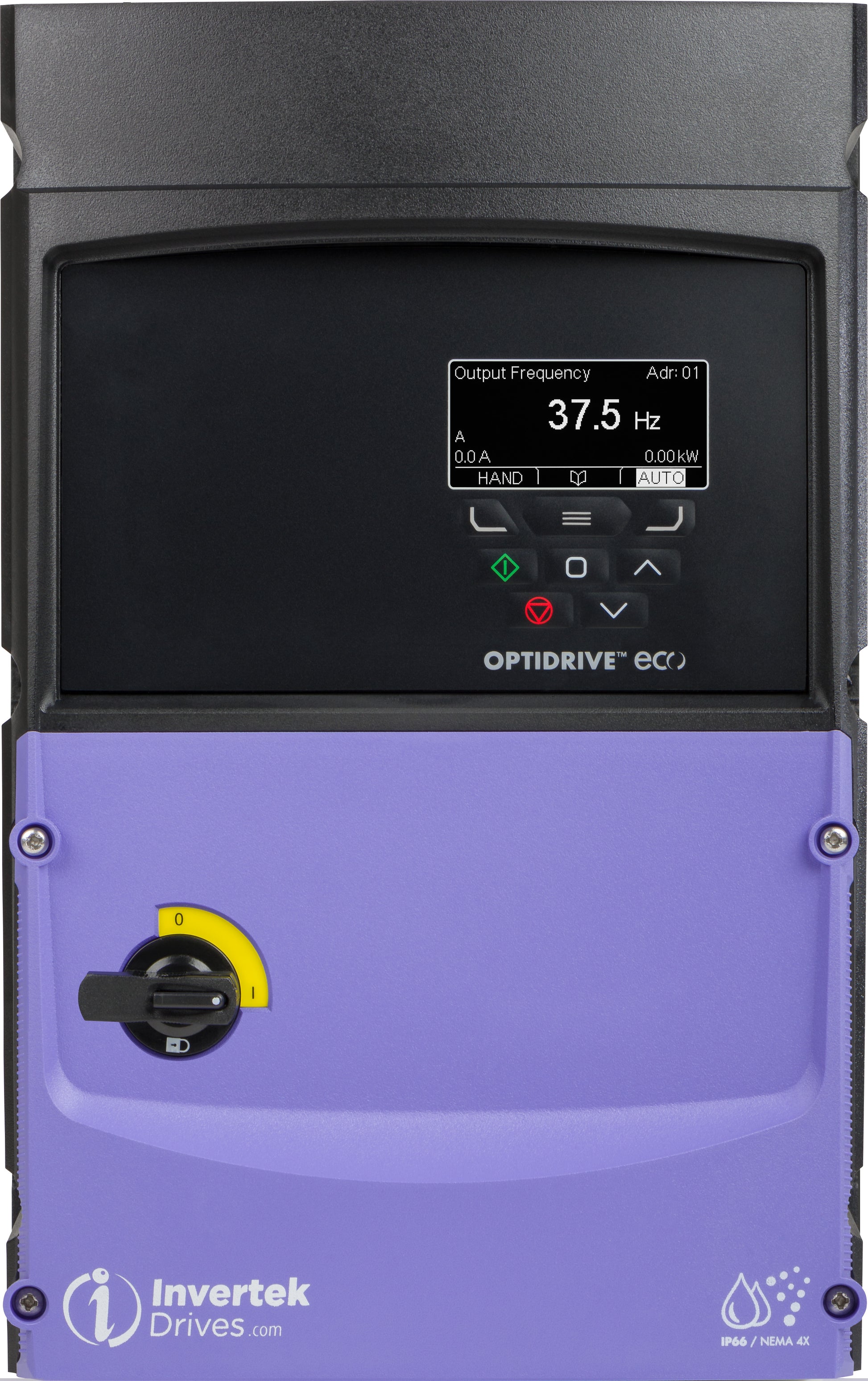

IP66 With Disconnect Outdoor Variable Frequency Drive with EMC Filter and TFT Display


Input Ratings

Supply Voltage 380-480 V
Input Phases 3
Supply Current Continuous 41.4 A
Supply Fuse or MCB (Type B) 50 A

Output Ratings

Motor Output Rating 22 kW (30 HP)
Output Voltage 0 – Supply Voltage
Output Current 46 A

Cable Information

Max Supply Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Length 100 m (328 ft)

Factory Build Options

EMC Filter Internal EMC
Brake Transistor No Brake Transistor
Enclosure IP66 With Disconnect Outdoor
Display TFT Display
PCB Coating Standard

Drive Dimensions

i
Size 4
Height 360 mm (14.17 in)
Width 240 mm (9.45 in)
Depth 271 mm (10.67 in)
Weight 9.5 kg (20.94 lbs)
Fixings 4 x M4

Packaged Dimensions

i
Height 325 mm (12.8 in)
Width 295 mm (11.61 in)
Depth 425 mm (16.73 in)
Weight 11.5 kg (25.35 lbs)
